Glass-Lined Reactor 500 liters

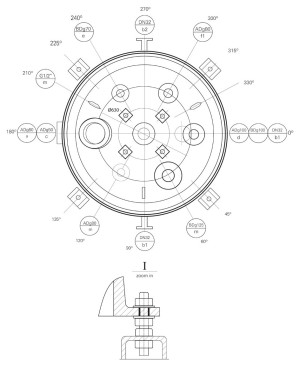

Nozzle Table
| Sign | Normal size | Connect size standard | Connect form | Use |
|---|---|---|---|---|
| a | ADg80 | PNO. 6 HG / T2105-91 | Flat | Flush |
| a1-3 | DN32 | PN1. 0 HG 20592-97 | RF | In/outlet |
| c | ADg150 | PNO. 6 HG / T2105-91 | Flat | Handhole |
| d | ADg100 | PNO. 6 HG / T2105-91 | Flat | Agitator shaft |
| e | BDg70 | PNO. 6 HG / T2105-91 | Flat | Thermometer pocket |
| f1-2 | ADg80 | PNO. 6 HG / T2105-91 | Flat | Sight glass |
| g | BDg100 | PNO. 6 HG / T2105-91 | Flat | Spare |
| h | BDg125 | PNO. 6 HG / T2105-91 | Flat | Spare |
| m | G1/2″ | TT24 – 79 | Inner screw | Vent |
Technical Parameters Table
| Item | Shell | Jacket |
|---|---|---|
| Max. working pressure Mpa | 0.4 | 0.6 |
| Max. working tempareture C | 200 | 200 |
| Design pressure Mpa | 0.4 | 0.6 |
| Design temperature C | 200 | 200 |
| Medium | ||
| Actual volumne m3 | 0.588 | |
| Heat-exchanged area m2 | 13.2 | |
| Welding head coefficient | 0.85 | 0.85 |
| Corrosive allowance mn | 2 | 1 |
| Vessel class | II | |
| Motor power | 3Kw | |
| Reducer type | ||
| Pressure diferent of shell & jacket | 0.6MPa | |
